Aaeon BOXER-8332AI NVIDIA A2

Product Overview Aaeon BOXER-8332AI NVIDIA A2

The BOXER‑8332AI‑CFL is an advanced, compact edge server developed by AAEON, tailored specifically for industrial AI applications.

This robust system is designed to bring the power of artificial intelligence to the edge, enabling real-time processing and decision-making without needing to rely on cloud infrastructure.

It supports 8th and 9th Generation Intel Core and Xeon processors, and can be configured with NVIDIA A2 or T4 GPUs, offering scalable AI inference capabilities. This makes it ideal for use in machine vision, smart surveillance, automated inspection, and industrial automation.

CPU & Chipset Support

This edge AI server supports a comprehensive range of Intel Coffee Lake-S processors, which are known for their excellent multitasking performance and power efficiency. Options include:

• Xeon: E-2124G (4 cores, 3.4 GHz) and E-2278GEL (8 cores, low-power embedded version) – perfect for industrial-grade applications.
• Core™ i7/i5/i3: Models like i7-9700TE or i5-8500T, which balance strong performance with thermal efficiency.
• Pentium and Celeron: Lower-power chips like G5400T, ideal for lighter workloads or cost-sensitive deployments.

The unit is built around the Intel C246 chipset, offering improved I/O throughput and workstation-class reliability. Note that it does not support H310 chipsets, ensuring only industrial-grade platforms are used.

Memory

The BOXER-8332AI-CFL offers up to 128 GB DDR4 memory, spread across four SO-DIMM slots. It supports both ECC (Error-Correcting Code) memory – essential for mission-critical applications requiring high reliability – and non-ECC options for general workloads.

With speeds up to 2666 MHz, this system can handle large AI models, rapid data processing, and real-time analytics without bottlenecks.

Storage Capabilities

This server supports diverse and high-speed storage solutions:

• Two 2.5″ SATA III bays allow for HDDs or SSDs, configurable in RAID for redundancy or speed.
• An optional half-size mSATA mini-card can be used to add compact SSD storage.
• A dedicated 2 2280 (PCIe x4) slot allows for ultra-fast NVMe SSDs, ideal for OS and AI dataset storage.

These storage options ensure maximum flexibility for edge deployments that require both performance and durability.

Graphics and Display

The BOXER-8332AI-CFL is equipped with dual HDMI 1.4 ports, each capable of supporting 4K resolution (3840×2160), allowing for simultaneous multi-display output.

It integrates the NVIDIA® A2 GPU for efficient AI inference and video processing, with optional upgrade to the NVIDIA® T4 GPU for heavier AI workloads.

There is also a PCIe x4 slot for installing additional GPUs or expansion cards depending on your use case.

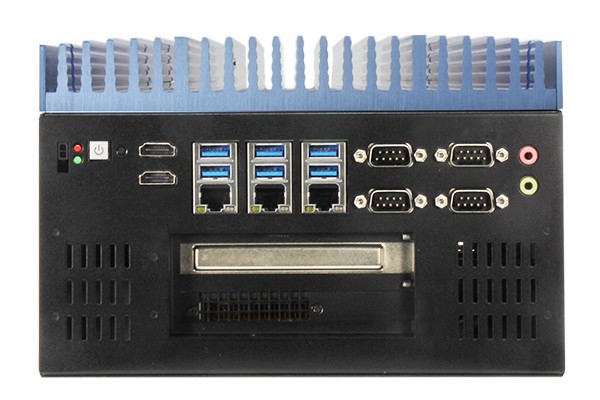

I/O and Connectivity

Connectivity is one of the strengths of this device. It includes:

• 3× Gigabit Ethernet ports, with Intel® chipsets ensuring stable and high-throughput connections—vital for real-time data transmission in AI or edge computing applications.
• 6× USB 3.2 Gen 1 ports: High-speed connectivity for cameras, sensors, external drives, or peripherals.
• 4× COM ports (RS-232/422/485): Flexible for industrial control devices like PLCs or serial sensors.
• Audio in/out ports: Mic-in and line-out connectors for voice control or monitoring.
• Remote power control, reset buttons, and SMA antenna connectors (for Wi-Fi or 4G modules) make the unit highly adaptable to various installation environments.

Expansion Slots

The device is built for modularity and expansion:

• 1× Full-size mini-PCIe slot with PCIe and USB signals, plus a SIM card slot — ideal for 4G/LTE modules.
• 1× Half-size mini-PCIe (also usable for mSATA).
• 1× M.2 2280 (M key) slot: PCIe x4 interface supports NVMe SSDs or AI accelerators.

These slots ensure the system can be upgraded or customized based on specific deployment needs, such as adding wireless connectivity or specialized processing units.

Power Input

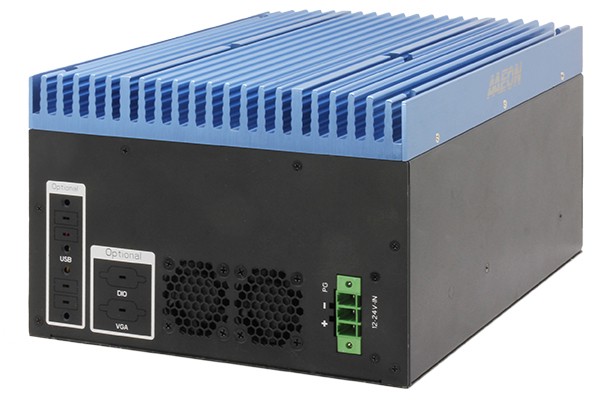

The BOXER-8332AI-CFL accepts 12–24 VDC input via a rugged 3-pin terminal block, ensuring compatibility with various power sources in industrial environments.

It can power both the CPU and GPU efficiently. AAEON also provides external power adapters in 120W, 240W, and 330W configurations, selected based on the GPU configuration and total system power draw.

Mechanical and Environmental Specifications

• Dimensions: 220 × 150 × 280 mm – compact enough to be deployed in tight rack or wall-mount spaces.
• Net Weight: 7 kg, indicating solid construction and cooling.
• Operating Temperature: 0°C to 40°C (with sufficient airflow of 0.5 m/s)
• Storage Temp Range: –45°C to 80°C, suitable for warehouse or transit environments.
• Vibration: 1 Grms, compliant with industrial installation needs.
• Shock: Withstands up to 5G, ensuring durability in harsh conditions.

Certifications

This product is certified for industrial and commercial use in global markets:

• CE (Europe)
• FCC Class A (USA)
• UKCA (United Kingdom)

These certifications ensure the system meets safety and electromagnetic compatibility standards for professional deployment.

Included in the Box

The standard package includes everything needed for deployment:

• BOXER-8332AI-CFL unit
• Pre-installed NVIDIA A2 GPU
• Wall-mount brackets
• 3-pin DC power connector
• Thermal pad and screw kit

Optional Accessories

AAEON offers a set of optional add-ons to enhance deployment:

• 120W / 240W / 330W adapters depending on system load
• Regional power cords for the US, EU, or Japan
• Wi-Fi and 4G modules, complete with antennas for wireless deployment

Operating System Support

This system supports popular operating systems:

• Windows® 10 Enterprise 64-bit
• Ubuntu 20.04.3 LTS, Kernel 5.4.0-72

Both platforms offer long-term support and compatibility with AI frameworks and industrial software stacks.
